DL series bag filter


Summary:

DL series bag filter is a kind of multipurpose filtering equipment with new structure, small volume, convenient and flexible operation, energy saving, high efficiency, airtight work, strong adaptability, and it is widely used inchemical industry, coatings, printing ink, food industry, etc.

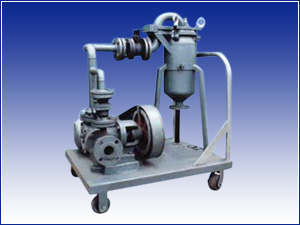

The machine has been designed to a single filter, duplex filter, and can be equipped with transfer pump and assembled in a mobile cart. Protection net of the filtration bag of filter is made of stainless steel, the other parts are made of carbon steel or stainless steel for selection of the customers with different filtering medium.
Model
Filter area
(M2)
Maximum operating pressure
(Mpa)
Maximum operating temperature
£¨¡æ£©
Caliber of inlet and outlet
£¨mm£©
Maximum flow rateM3/h< Viscosity = 1 centipoise>
Nominal filtration accuracy£¨§èm)
DL-IP1S
0.25
0.6
120
Operating temperature refers to the bag material
¦µ50
18
1¡¢3¡¢5
10¡¢15¡¢25
40¡¢50¡¢65
75¡¢80¡¢100
......1200
DL-IP2S
0.5
¦µ50
36
DL-4P1S
1
¦µ100
70
DL-4P2S
2
¦µ125
140
DL-6P2S
3
¦µ150
210
DL-8P2S
4
¦µ200
280
DL-10P2S
5
¦µ250
350
DL-12P2S
6
¦µ250
420
DL-16P2S
8
¦µ300
560
DL-20P2S
10
¦µ350
700
DL-24P2S
12
¦µ350
840

¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡Special specification can be customized according to the requirements of the customers
