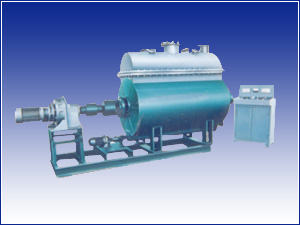

ZJG type internal heating agitation vacuum drying machine

First, Brief Introduction

ZJG type drying machine is f plate type inner heating and agitation type series products. This product combines the actual domestic situation, complement each other, with high thermal efficiency, wide adaptability, and its comprehensive technical performance places at the leading domestic level.


Second, Application scope

This drying machine is used to all the dye, dye intermediates, pigment, inorganic and organic and all kinds of chemical products, and all kinds of powder, granule, crystal shape, block and filter cake and other solid materials of pesticides, medicine, food, feed, mining and environmental protection processing products industries , and normal pressure drying of paste or liquid materials, vacuum drying, including drying for thermal sensitive material and viscous material. It can be applied in all the drying temperature range of 30 above. According to the different needs and conditions, steam heating, electric heating, heat conduction oil heating, hot water heating, air furnace heating and boiler flue gas heating can be adopted, the adaptability is wide.

This machine can substitute the rake drying machine, hot air drying oven, air drying machine, boiling dryer (fluidized bed), vacuum dryer, braising drying machine, etc, and the material temperature and humidity can be automatically displayed during the drying process, it really is the ideal product renewal of the domestic drying equipment.

Third, technical parameters

(table as per specifications)

Material is carbon steel and stainless steel, other materials can be customized according to the material and the needs of users.

The main technical parameters

Item

unit

ZJG-5
ZJG-10
ZJG-15
ZJG-20
ZJG-30
Heating area
m2
5
10
15
20
30

Operation volume

m3
0.3
0.78
1.2
1.7
2.7

Applicable temperature

40-150

Maximum work pressure

MPa
≤0.5

Motor power

KW
4
10
11
15
18
speed
r/min
5-20
5-16

Shape dimension

Long x width × high

3673×640×1770
4180×920×2350
4600×1120×2500
5500×1120×2500
5500×1320×2700

weight

Kg
1800
4200
5100
7800
11000
