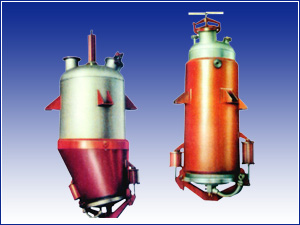

Multi-function extractor

The equipment can be used in normal pressurization,  water frying, wet immersion,thermal circumfluence, forced circulation penetration, aromatic oil extraction and organic solvent recovery and so on various process operations in Chinese medicine, food and chemical industry, with high efficiency, easy operation,etc. The selected material for equipment set is fine, which is widely applicable for volatile oil extraction in pharmacy, food, chemical industry and so on.

The main technical parameters
¡¡
0.5
1.0
2.0
3.0
6.0

Full volume (L)

500
1200
2500
1200
1200

Design pressure in tank (MPa)

0.09

Design pressure in jacket (MPa)

0.3

Allowable vacuum in tank (MPa)

60

Compressed air pressure (MPa)

0.6-0.7

Inclined door diameter (mm)

300
300
400
300
300

Heating area (M2)

2.4
3.1
4.2
3.1
3.1

Condensing area (M2)

3
5
5
5
5

Cooling area (M2)

1
1
1
1
1

Filtering area (M2)

0.25
0.25
0.25
0.25
0.25

Equipment weight (kg)

1000
1500
1800
1500
1500

Outline dimension (mm)

¦Õ1400¡Á¦Õ2300
¦Õ1700¡Á¦Õ2900
¦Õ1800¡Á¦Õ3700
¦Õ1700¡Á¦Õ2900
¦Õ1700¡Á¦Õ2900

Energy consumption (kg/h)

200
245
325
245
 ¡¡
