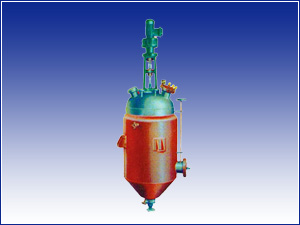

Model JC Traditional Chinese medicine alcohol precipitation tank

Traditional Chinese medicine alcohol precipitation tank series is the special equipment newly developed by our factory for alcoholsink (also solution change or alcohol precipitation) process for traditional Chinese medicine factory, which is initiative in our country. It mainly used inrefrigeration to the concentrated solution of traditional Chinese medicine liquid frying water or normal pressure alcohol precipitation operation. It can also be used in precipitation operation after concentration of Chinese medicine ethanol-extraction. It can be classified into two types: type A is pneumatic slag discharge, type B is ball valve slag discharge.


Item

Unit
JC-300
JC-500
JC-1000
JC-1500
JC-2000
JC-3000

volume

m3
0.3
0.5
1.0
1.5
2.0
3.0

Heat transfer area

m2
1.8
3.0
4.5
6.5
7.0
9.5

Working temperature

-15~normal pressure
-15~normal pressure
-15~normal pressure
-15~normal pressure
-15~normal pressure
-15~normal pressure

Maximum work pressure of heat transfer medium

MPa
0.25
0.25
0.25
0.25
0.25
0.25

Work pressure of working medium

MPa
0.01
0.01
0.01
0.01
0.01
0.01

Heat transfer coeiificient

KJ/M2.h.
150~200
150~200
150~200
150~200
150~200
150~200

Agitation power

kw
0.75
0.75
1.5
2.2
2.2
2.2

Agitation speed

r/min
250
250
160
160
160
140

Total weight

kg
612
1260
1480
1750
1670
2135
