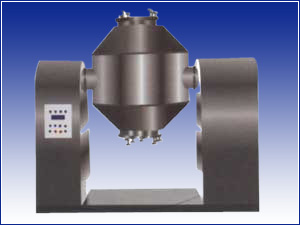

SZG series doule cone rotary vacuum drying machine

Application:

A used in chemical, pharmaceutical and food industries of powdered, granular and fibrous need to dry at low temperature of the material (such as biochemical products, etc), more applicable for easy oxidation, volatile, thermal sensitive, strong stimulation, is toxic materials and the perspective of shape with special requirements material dry.

Technical parameters:
Item

Machine type

name

unit

100
200
350
500
750
1000
1500
2000
3000
4500

Always let product

L
100
200
350
500
750
1000
1500
2000
3000
4500

volume

L
50
100
175
250
375
500
750
1000
1500
2250

Heating area

m2
1.16
1.5
2
2.63
3.5
4.61
5.58
7.5
9.6
13.8

Turn speed

rpm
3-13

Work rate

kW
0.75
1.1
1.5
1.5
2
3
3
4
5.5
7.5

Rotary height

mm
1810
1910
2090
2195
2500
2665
2915
3055
3330
4210

Weight

kg
550
700
900
1100
1200
1300
1500
2000
3000
4000

Tank design pressure

MPa
-0.09-0.096

Sandwich design pressure

MPa
0.3
Order information:
A steam and hot water heating points, heat conduction oil heating three ways;
When you order a please specify material could take temperature or dry machine using temperature, so that our factory for your choice or provide heat source;
A dry viscous material, the factory will in pot special design "copied board" structure;
A whole equipment supporting according to need a premium
