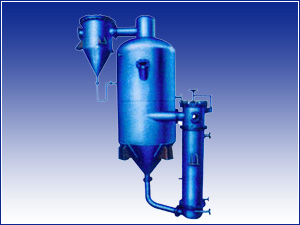

WZI type exterior heating type vacuum evaporator

Model WZI exterior circulating type vacuum evaporator,is a kind of natural circulating type evaporator operated under vacuum system.

WZI type has one effect, two effect, and three effect series specifications, and additionally there is Q type for the compulsory circulating evaporator. The product can be widely used for evaporation and concentration of water or the organic solvent solution of medicine, food, chemical industry, light industry, etc. Especially suitable for heat sensitive material (such as traditional Chinese medicine production water, alcohol extract, antibiotics fermented liquid, milk, fruit juice, etc), low temperature continuous enrichment is carried out under vacuum conditions , which can ensure the quality of products.

Number

Item

unit

WZI-2000 type

WZI-1500 type
WZI-1000 type
WZI-750 type
WZI-500 type
WZI-250 type
1

evaporation

kgH2O/h
2000-2200
1500-1700
1000-1200
750-800
500-600
250-300
2

Tank vacuum degree

pa
-90000
-90000
-90000
-90000
-90000
-90000
3

Heating area

m3
22
17.6
11
8
5.4
3.0
4

Steam pressure

Mpa (table press)

0.05-0.2
0.05-0.2
0.05-0.2
0.05-0.2
0.05-0.2
0.05-0.2
5

Steam consumption amount

kg/h
2000-2200
1500-1700
1100-1200
700-800
550-600
300-350
6

Cooling water pressure

Mpa (table press)

0.25-0.3
0.25-0.3
0.25-0.3
0.25-0.3
0.25-0.3
0.25-0.3
7
Heater diameter
mm
600
500
400
400
300
200
8

Evaporation tank diameter

mm
1400
1200
1000
950
800
500
9

Liquid trap diameter

mm
650
550
500
400
400
300
10

Heater diameter

kg
980
685
505
400
300
188
11

Evaporation tank diameter

kg
1100
840
580
450
320
175
12

Liquid trap diameter

kg
/
116
106
85
85
63
13

Condenser diameter

mm
/
/
/
550
400
300
14

Condenser diameter

kg
/
/
/
1120
885
450
