Multifunctional extraction tank

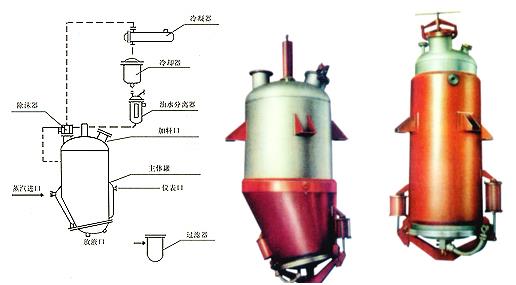

【TQ Multifunctional Extraction Tank】
This equipment can be used for various process operations in traditional Chinese medicine, food and chemical industries, including atmospheric pressure extraction, water decoction, maceration, hot reflux, forced circulation percolation, aromatic oil extraction and organic solvent recovery. It features high efficiency and convenient operation. The unit is fabricated with premium materials and widely applied for volatile oil extraction in pharmaceutical, food, chemical and other industries.
| 0.5 | 1.0 | 2.0 | 3.0 | 6.0 | |
| Total Volume (L) | 500 | 1200 | 2500 | 1200 | 1200 |
| Design Pressure Inside Tank (MPa) | 0.09 | ||||
| Jacket Design Pressure (MPa) | 0.3 | ||||
| Allowable Vacuum Degree Inside Tank (MPa) | 60 | ||||
| Compressed Air Pressure (MPa) | 0.6-0.7 | ||||
| Discharge Door Diameter (mm) | 300 | 300 | 400 | 300 | 300 |
| Heating Area (m²) | 2.4 | 3.1 | 4.2 | 3.1 | 3.1 |
| Condensing Area (m²) | 3 | 5 | 5 | 5 | 5 |
| Cooling Area (m²) | 1 | 1 | 1 | 1 | 1 |
| Filtration Area (m²) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Equipment Weight (kg) | 1000 | 1500 | 1800 | 1500 | 1500 |
| Overall Dimension (mm) |
φ1400 ×φ2300 |
φ1700 ×φ2900 |
φ1800 ×φ3700 |
φ1700 ×φ2900 |
φ1700 ×φ2900 |
| Energy Consumption (kg/h) | 200 | 245 | 325 | 245 | |
