  Main Application:

  It is mainly suitable for liquid concentration in pharmaceutical, food, chemical and other industrial sectors. It can also recover alcohol and perform simple reflux extraction.

  Structure:

  The equipment mainly consists of six components: concentration tank, primary condenser, vapor-liquid separator, secondary condenser, cooler and receiving tank, all fabricated from stainless steel. The concentration tank adopts jacketed structure; the condenser is tube-and-shell type; the cooler is coil type.

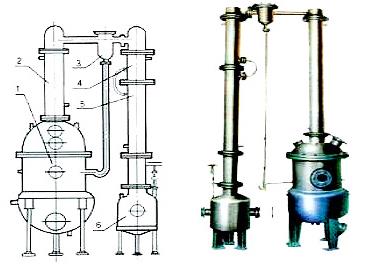

  Schematic Diagram of Main Components

  1. Concentration Tank   2. Primary Condenser   3. Vapor-Liquid Separator   4. Secondary Condenser   5. Cooler   6. Receiving Tank

Main Technical Parameters

Model	50	100	200	300	500	700
Steam Pressure, MPa	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15
Vacuum Degree, mmHg	≤700	≤700	≤640	≤640	≤600	≤600
Heating Area, m²	0.4	0.59	0.8	1.1	1.45	1.8
Condensing Area, m²	1.2	1.7	2.45	3.0	3.2	3.6
Cooling Area, m²	0.25	0.35	0.4	0.6	0.7	0.85
Tank Volume, L	15	45	60	76	100	125
Net Weight, kg	～350	～450	～550	～650	～800	～1000
Overall Dimension L×W×H, mm	1200×600 ×2200	1350×750 ×2200	1700×800 ×2700	1700×1000 ×3400	2100×1200 ×3400	2400×1300 ×3400

50100200300500700 Steam pressure Mpa ≤ 0.15 ≤ 0.15 ≤ 0.15 ≤ 0.15 ≤ 0.15 ≤ 0.15 Vacuum degree mmHg ≤ 700 ≤ 700 ≤ 640 ≤ 640 ≤ 600 ≤ 600 Heating area M2 0.4 0.5 9 0.8 1.1 1.45 1.8 Condensation area M2 1.2 1.7 2.4 5 3.0 3.2 3.6 Cooling area M2 0.2 5 0.3 5 0.4 0.6 0.7 5 Heat absorption tank volume L 15 45 60 76 100 125 Equipment net weight kg ～ 350 ～ 450 ～ 550 ～ 650 ～ 800 ～ 1000 Overall dimensions Length × Width × Height mm 1200 × 600
×22001350×750
×22001700×800
×27001700×1000
×34002100×1200
×34002400×1300
×3400
