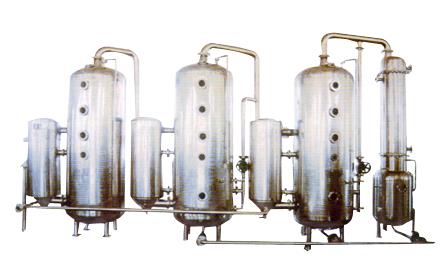

WZ three-effect energy-saving external circulation ring replacement vacuum concentrator (can recycle alcohol)

This concentrator is applicable for concentration of solutions such as Chinese herbal medicine, western medicine, glucose, starch, monosodium glutamate, dairy products and chemical materials. It is especially suitable for low-temperature vacuum concentration of heat-sensitive materials. Users may select the concentrator from this series according to actual working conditions and technical parameters.

1. This concentrator adopts external-heating natural circulation and negative-pressure evaporation mode, featuring fast evaporation rate and high concentration specific gravity up to 1.2-1.3.

2. The concentrator uses triple-effect simultaneous evaporation. Secondary steam is reused repeatedly, which reduces boiler investment and energy consumption. Its energy consumption is 70% lower than that of single-effect concentrators. Users can recover the total investment of this concentrator from energy savings within less than one year.

3. Multi-functional operation features: (1) Alcohol can be recovered at concentration of around 80%. (2) The 1st, 2nd and 3rd effects can be combined repeatedly for ointment collection. (3) Intermittent or continuous feeding is available.

Model		WZⅢ500	WZⅢ1000	WZⅢ1500	WZⅢ2000	WZⅢ3000	WZⅢ5000
Evaporation Capacity (kg/h clean water)		500	1000	1500	2000	3000	5000
Steam Consumption (kg/h)		＜200	＜400	＜600	＜800	＜1200	＜2000
Overall Dimension L×W×H (M)		3×5×1.3	3.3×6.5×1.5	3.5×7×1.7	4×7.5×2	4.3×7.8×2	4.5×8×2
Circulating Water Consumption (T/h)		5	10	13	15	18	25
Evaporation Temperature	1st Effect	80-90		Vacuum Degree (MPa)	1st Effect	0.02-0.04
	2nd Effect	55-70			2nd Effect	0.05-0.08
	3rd Effect	55-65			3rd Effect	0.08-0.09
Steam Pressure (MPa)		0.2 for 1st Effect		Concentration Specific Gravity		1.2-1.3
