Stainless steel corrugated packing
【Corrugated Packing】

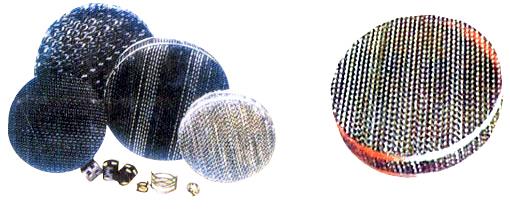

Under the guidance of Shanghai Research Institute of Chemical Industry, our factory specializes in manufacturing new high-efficiency corrugated structured packing and random packing. Materials including stainless steel, copper, aluminum, pure titanium, molybdenum-titanium alloy, etc. are available. These products are widely applied in flavors, pesticides, fine chemicals, petrochemical and other industries. Structured packing includes mesh, wire mesh, perforated plate, expanded perforated plate types, etc. Random packing mainly consists of metal pall ring, metal cascade mini ring, metal intalox saddle.
Geometric Characteristic Parameters of SW Mesh Corrugated Packing
| Packing Model | Material | Peak Height h (mm) | Specific Surface Area (m²/m³) | Hydraulic Diameter ah (mm) | Inclination Angle | Void Fraction (%) | F-Factor (m/s·kg/m²) | Theoretical Plates No./m | Pressure Drop (mmHg/m) |
| SW-1 | Stainless Steel | 4.5 | 643 | 5.7 | 45° | 91.6 | 1.4-2.2 | 5-8 | 2-3.5 |
| SW-1 | 6.5 | 450 | 9 | 30° | 95.5 | 1.5 | 4-5 | 1.6-1.8 |
Geometric Characteristic Parameters of Wire Mesh Corrugated Packing (SC=CY, SB=BX)
| Packing Model | Material | Peak Height h (mm) | Specific Surface Area (m²/m³) | Hydraulic Diameter ah (mm) | Inclination Angle | Void Fraction (%) | F-Factor (m/s·kg/m²) | Theoretical Plates No./m | Pressure Drop (mmHg/m) |
| CY | Stainless Steel | 4.3 | 700 | 5 | 45° | 87-90 | 1.3-2.4 | 6-9 | 5 |
| BX | 6.3 | 500 | 7.3 | 30° | 95 | 2-2.4 | 4-5 | 1.5 |
Geometric Characteristic Parameters of Perforated Plate Corrugated Packing
| Packing Model | Material | Peak Height h (mm) | Specific Surface Area (m²/m³) | Hydraulic Diameter ah (mm) | Inclination Angle | Void Fraction (%) | F-Factor (m/s·kg/m²) | Theoretical Plates No./m | Pressure Drop (mmHg/m) |
| SM125 | Stainless Steel | 24 | 125 | 35 | 45° | 98.5 | 3 | 1-1.2 | 1.5 |
| SM225 | 12 | 250 | 15.8 | 45° | 97 | 2.6 | 2-3 | 1.5-2 | |
| SM325 | 8 | 350 | 12 | 45° | 95 | 2 | 3.5-4 | 1.5 | |
| SM425 | 6.5 | 450 | 9 | 45° | 93 | 1.5 | 3-4 | 1.8 |
Geometric Characteristic Parameters of Expanded Perforated Plate Corrugated Packing
| Packing Model | Material | Theoretical Plates No./m | Peak Height h (mm) | Void Fraction (%) | Specific Surface Area (m²/m³) | Pressure Drop (mmHg/m) | F-Factor (m/s·kg/m²) |
| 700Y | Stainless Steel | 5-7 | 4.3 | 85 | 700 | 7 | 1.6 |
| 500X | 3-4 | 6.3 | 90 | 500 | 2 | 2.1 | |
| 250Y | 2.5-3 | 97 | 250 | 2.25 | 2.6 |
