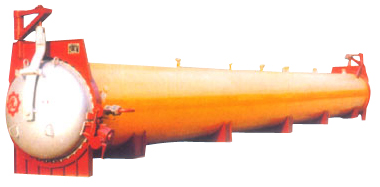

Autoclave, vulcanization tank, glass kettle

Main Performance Parameters
Item Unit Model & Specification
BLF1.65×4 BLF2×5 BLF2.5×5 BLF2.85×5.5
Kettle Inner Diameter m 1.65 2 2.5 2.85
Effective Length m 4 5 5 5.5
Design Pressure MPa 1.4 1.5 1.6 1.6
Design Temperature ℃ 150 150 160 160
Working Pressure MPa 1.3 1.4 1.5 1.5
Working Temperature ℃ 150 150 150 160
Medium Air Air Air Air
Track Gauge inside Kettle mm 900 1050 1000 1000
Effective Volume m³ 9.8 18 25 31
Electric Heating Power kW 54 72 144 210
Total Motor Power kW 8 14.5 30.5 22
Total Weight t 6 8.8 15.4 21.3
Overall Dimension m 5.7×2.36×2.73 6.73×2.59×3.19 7×2.97×3.87 8.8×3.4×4.7
Custom design is available for special requirements. (φ800~φ3000)
Shuoyun Petrochemical's production qualifications: Special Equipment Manufacturing License, Special Equipment Design License, Radiation Safety License...
