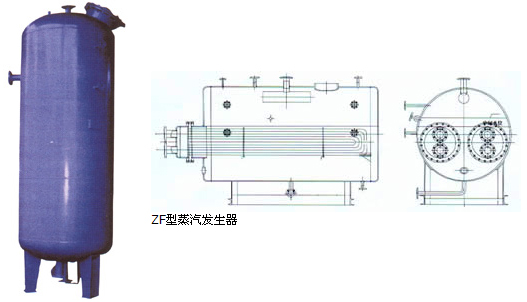

ZFQ, ZF steam generators

  Our factory specializes in manufacturing ZF type steam generators matched with organic heat carrier furnaces. It can not only supply high-temperature medium, but also produce steam for users. It is especially suitable for flocking, strip spraying and other industries in textile and light industry, meeting production and domestic needs and expanding application scope. "0.1~1 ton steam generators in stock", we can manufacture steam generators of 0.1~1 ton.
I. Vertical High-efficiency Energy-saving Steam Generator
Capacity
(t/h)
Diameter
(DN)
Height
(m)
Coil Weight
(Kg)
Heat Transfer Area
(㎡)
Total Weight
(Kg)
0.1
800
1250
165
5
495
0.2
1200
1400
380
11.6
1060
0.1
1200
1800
516
17.5
1300
0.5
1200
2560
639
25
1805
1.0
1600
3200
1070
40
2974
1.5
1600
3200
1361
52
3265
2.0
1800
3600
1851
60
4012
II. Horizontal High-efficiency Energy-saving Steam Generator
Capacity
(t/h)
Diameter
(DN)
Height
(m)
Coil Weight
(Kg)
Heat Transfer Area
(㎡)
Total Weight
(Kg)
2
1200
3500
683
40
3100
2.5
1600
3600
1230
60
4105
3
1800
3500
3220
80
5112
Shuoyun Petrochemical's production qualifications: Special Equipment Manufacturing License, Special Equipment Design License, Radiation Safety License...
