【Corrugated Packing】

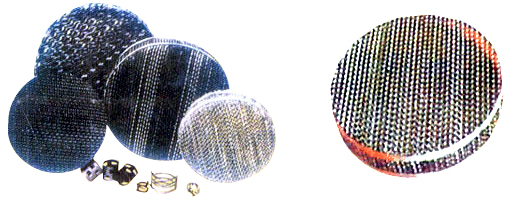

Under the guidance of Shanghai Research Institute of Chemical Industry, our factory specializes in manufacturing new high-efficiency corrugated structured packing and random packing. Materials available include stainless steel, copper, aluminum, pure titanium, molybdenum-titanium alloy, etc. Widely applied in flavors & fragrances, pesticides, fine chemicals, petrochemical and other industries. Structured packing includes perforated plate, wire mesh, orifice plate, expanded perforated plate, etc. Main types of random packing: metal pall ring packing, metal cascade mini ring packing, metal intalox saddle packing.
|
|
|
Geometric Characteristic Parameters of SW Type Perforated Corrugated Packing
|
|
Packing Model
|
Material
|
Peak Height h (mm)
|
Specific Surface Area (m²/m³)
|
Hydraulic Diameter ah (mm)
|
Inclination Angle
|
Void Fraction (%)
|
F-Factor (m/s·kg/m³)^0.5
|
Theoretical Plates No./m
|
Pressure Drop (mmHg/m)
|
|
SW-1
|
Stainless Steel
|
4.5
|
643
|
5.7
|
45°
|
91.6
|
1.4-2.2
|
5-8
|
2-3.5
|
|
SW-1
|
6.5
|
450
|
9
|
30°
|
95.5
|
1.5
|
4-5
|
1.6-1.8
|
|
|
Geometric Characteristic Parameters of Wire Mesh Corrugated Packing (SC=CY, SB=BX)
|
|
Packing Model
|
Material
|
Peak Height h (mm)
|
Specific Surface Area (m²/m³)
|
Hydraulic Diameter ah (mm)
|
Inclination Angle
|
Void Fraction (%)
|
F-Factor (m/s·kg/m³)^0.5
|
Theoretical Plates No./m
|
Pressure Drop (mmHg/m)
|
|
CY
|
Stainless Steel
|
4.3
|
700
|
5
|
45°
|
87-90
|
1.3-2.4
|
6-9
|
5
|
|
BX
|
6.3
|
500
|
7.3
|
30°
|
95
|
2-2.4
|
4-5
|
1.5
|
|
|
Geometric Characteristic Parameters of Perforated Plate Corrugated Packing
|
|
Packing Model
|
Material
|
Peak Height h (mm)
|
Specific Surface Area (m²/m³)
|
Hydraulic Diameter ah (mm)
|
Inclination Angle
|
Void Fraction (%)
|
F-Factor (m/s·kg/m³)^0.5
|
Theoretical Plates No./m
|
Pressure Drop (mmHg/m)
|
|
SM125
|
Stainless Steel
|
24
|
125
|
35
|
45°
|
98.5
|
3
|
1-1.2
|
1.5
|
|
SM225
|
12
|
250
|
15.8
|
45°
|
97
|
2.6
|
2-3
|
1.5-2
|
|
SM325
|
8
|
350
|
12
|
45°
|
95
|
2
|
3.5-4
|
1.5
|
|
SM425
|
6.5
|
450
|
9
|
45°
|
93
|
1.5
|
3-4
|
1.8
|
|
|
Geometric Characteristic Parameters of Expanded Perforated Plate Corrugated Packing
|
|
Packing Model
|
Material
|
Theoretical Plates No./m
|
Peak Height h (mm)
|
Void Fraction (%)
|
Specific Surface Area (m²/m³)
|
Pressure Drop (mmHg/m)
|
F-Factor (m/s·kg/m³)^0.5
|
|
700Y
|
Stainless Steel
|
5-7
|
4.3
|
85
|
700
|
7
|
1.6
|
|
500X
|
3-4
|
6.3
|
90
|
500
|
2
|
2.1
|
|
250Y
|
2.5-3
|
|
97
|
250
|
2.25
|
2.6
|
|
|
|
