Vacuum rake dryer

It features simple structure, easy operation, long service life, stable and reliable performance, low steam consumption and strong adaptability, delivering good product quality. It is especially suitable for drying paste materials that are heat-sensitive, flammable and prone to oxidation under temperature adjustment. Long-term operation by users has verified it as a high-performance drying equipment. Principle: The wet material is fed into the center of the top of the shell. Under stirring by forward-reverse rotating rake teeth, the material moves axially back and forth. The material surface contacting the shell inner wall is continuously renewed and indirectly heated by steam. Uniform agitation from rake teeth and crushing by crushing rods facilitate moisture release from the material surface. The vaporized moisture passes through dry dust collector, wet dust collector and condenser, and is vented at the vacuum pump outlet. Structure: Main components of vacuum rake dryer.

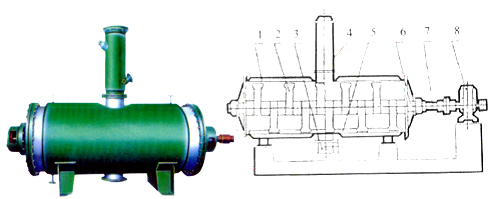

1. Shell 2. Rake Teeth 3. Discharge Device 4. Feeding Device 5. Crushing Rod
6. Sealing Device 7. Agitating Shaft 8. Transmission Device

Applicable Materials

Slurry, high-viscosity paste, materials below 100 mesh, various pigments, clay-like materials, filter cake, centrifuge filter cake, soda ash detergent,
alkali rock starch, dyes, pigments, clay ash, clay, cement, etc.

Applications under Suitable Conditions

Materials below 100 mesh, solutions, synthetic fibers, crystals, vacuum liquid, emulsions, sweet potato slices, mineral sand, suspensions

Models and Technical Specifications

Model & Main Parameters	Nominal Volume	Heat Transfer Area	One-time Charging Capacity	*Working Pressure		Operating Temp.	Main Shaft Speed	Material	Weight	Motor Power	Overall Dimension L×W×H
				Inside Cylinder	Inside Jacket
XPG0.5	0.5	1.86	0.2	0.021	0.686	435	15-20			Note:3
										Aux.:5.5
XPG1	1	6	0.75	0.021	0.686	435	9	A3	3400	5.5	3700×945×3270
								1Cr18Ni9Ti	3300
XPG2	2	8	1.2	0.021	0.588	425	9	A3	4900	11	4570×1130×3455
								1Cr18Ni9Ti	4800
XPG3	3	11.5	11.5	1.021	0.588	425	9	A3	6400	15	6076×1130×2980
								1Cr18Ni9Ti	6300
