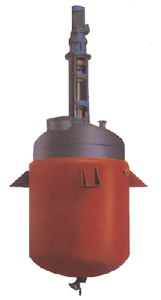

Steam heating heat transfer oil circulation heating reaction kettle

Main Technical Parameters of Stainless Steel Reaction Kettle with Heat Transfer Oil Circulation Heating & Steam Heating
Spec. L Inner Cylinder Diameter Ø MM Jacket Diameter Ømm Motor Power KW Reducer Model Agitation Speed r.p.m
30 400 500 0.6-1.1 M2 60-80
50 500 600 0.6-1.1 M3 60-80
100 550 650 1.1-1.5 M4 60-80
150 600 700 2.2 M6 60-80
200 650 750 2.2 M6 60-80
300 800 900 2.2 M6 60-80
500 900 1000 2.2 M6 60-80
800 1100 1200 4 M8 60-80
1000 1200 1300 4 M8 60-80
1500 1300 1400 4 M8 60-80
2000 1400 1500 4 M8 60-80
2500 1400 1500 7.5 BLB7.5-4-13 90
3000 1400 1500 7.5 BLB7.5-4-13 90
3500 1400 1500 7.5 BLB7.5-4-13 90
4000 1500 1600 7.5 BLB7.5-4-23 63
5000 1600 1700 7.5 BLB7.5-4-23 63
6000 1800 1900 15 BLB15-5-13 100
8000 2000 2100 15 BLB15-5-13 100
32000 3000 3200 37 BLB450-11-45 50-100
Other special specifications can be custom designed.
Heat transfer oil circulation heating is applicable for reaction kettles and resin equipment above 500L.
When ordering the above equipment, please specify *Working Pressure, *Working Temperature and Process Medium.
Shuoyun Petrochemical's production qualifications: Special Equipment Manufacturing License, Special Equipment Design License, Radiation Safety License...
