Jiangsu Shuoyun Petrochemical Equipment Co., Ltd.

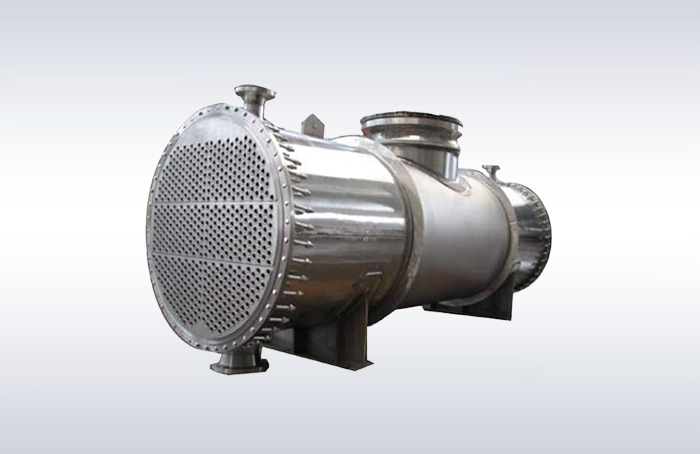

Shell and Tube Heat Exchanger ◎ Category: Pressure Vessel Series ◎ Application Industries: Petrochemical, Power, Metallurgy Industries ◎ Equipment Features: Compact structure, easy installation, excellent corrosion resistance

◎ Product Introduction
Shell and tube heat exchanger is our company's flagship product. Our company possesses many unique advantages in structural design, product manufacturing and application technology of shell and tube heat exchangers. Among them, spiral tube, curved tube and baffle plate shell and tube heat exchangers are independently developed by our company. Featuring world-class performance and quality, they are widely used in various industries, especially petrochemical, power and metallurgy sectors.

◎ Technical Parameters:
— Maximum Design Pressure: ≤10MPa
— Maximum Shell Diameter: 4600mm
— Heat Exchange Tube Size: Φ19~Φ325mm
— Maximum Design Temperature: 85℃
— Maximum Heat Transfer Area per Unit: 6000㎡
— Heat Exchange Tube Length: 1000 ~ 16000mm. Common Materials: Carbon Steel, Stainless Steel 304, 316L, 2205, 904L, Titanium, Copper, Nickel, Hastelloy

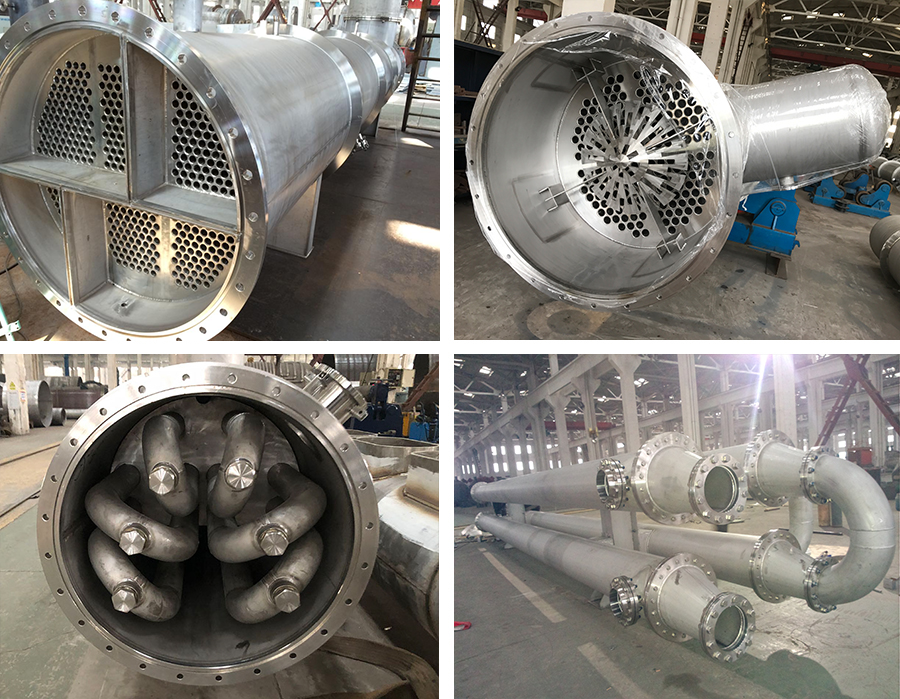

◎ On-site Photos
