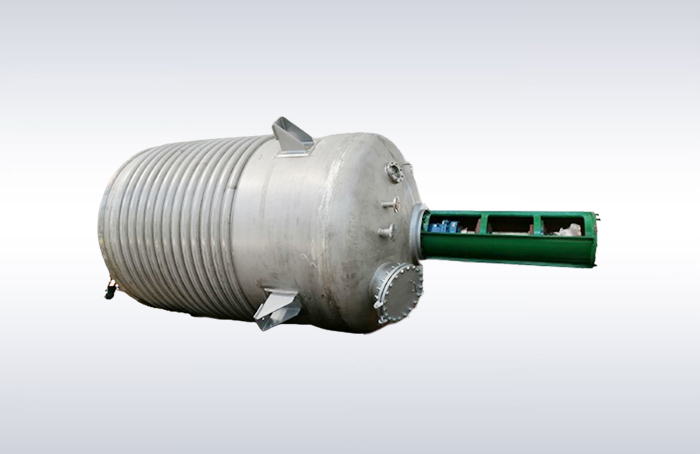

Reactor ◎ Category: Pressure Vessel Series ◎ Application Industries: Chemistry, biology, material science, pharmaceutical chemistry, food, cosmetics ◎ Equipment Features: Strong corrosion resistance, high transparency, easy cleaning

◎ Product Introduction
Reaction vessels refer to pressure vessels mainly used for physical and chemical reactions, such as reactors, oxidation kettles, decomposition kettles, polymerization kettles, crystallization kettles, etc. Our company can manufacture large reactors with volume up to 120m³, pressure up to 10MPa and single unit weight up to 100T. Heating methods include electric heating, steam, thermal oil, infrared ray, etc.; cooling modes comprise jacket cooling, external coil cooling and internal coil cooling. Variable frequency speed regulation: 0~1000r/min. The type of stirring impeller can be optionally configured according to customer requirements. Available materials: carbon steel, stainless steel, titanium, aluminum alloy, duplex steel and composite materials.
Based on different sealing types, reactors are classified into packing seal, mechanical seal and magnetic seal.
According to manufacturing structure, reactors are divided into three categories: open flat cover reactor, open large butt-welded flange reactor and closed reactor. Each structure has its applicable scope, advantages and disadvantages.

◎ Technical Parameters

Specification (L)	Nominal Diameter (mm)	Jacket Nominal Diameter (mm)	Motor Power (kW)	Reducer Model	Stirring Speed (rpm)
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	650	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-65A	35-59
80000	4000	4200	55	BLD 55-56A	35-59

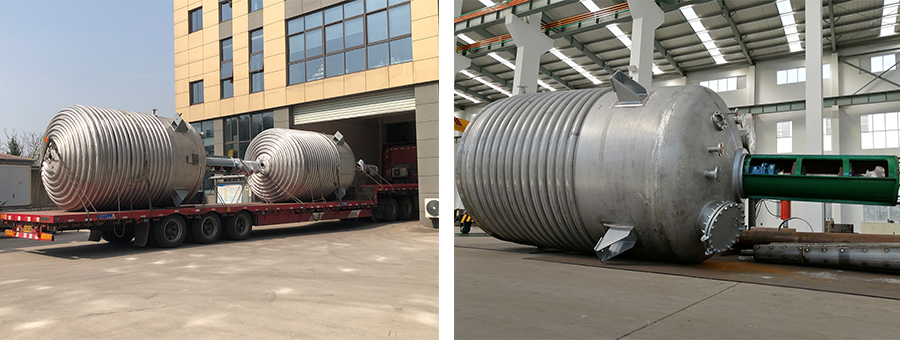

◎ Site Photos
