Jiangsu Shuoyun Petrochemical Equipment Co., Ltd.

Shredder ◎ Category: Shredding Equipment Series ◎ Application Industries: Dead animals, animal protein, waste garbage, waste vegetables, sludge, wood, ore ◎ Equipment Features: Good sharpness, strength, hardness and wear resistance

◎ Product Introduction
The shredder is mainly used for tearing, crushing and disintegrating large solid materials. The rotating shaft can be single-shaft, double-shaft, four-shaft, etc. It has a wide variety of blades made of high-quality steel with good sharpness, strength, hardness and wear resistance. Different blade structures are designed for different materials. Blade materials include 9CrSi, 6CrW2Si, Cr12MoV, SKD-11, W6Mo5Cr4V2, H13K, HMB, D2, M2, DC53, SK2, SK4, SK5, 3Cr13, 440B, 42CrMo and other premium grades. Widely applied in dead animal disposal, animal protein processing, waste garbage, waste vegetables, sludge, wood, ore and other industries.

◎ Technical Parameters

Model	PS-5	PS-8	PS-10	PS-12	PS-15	PS-20
Housing Size (mm)	300×600	400×800	500×1000	600×1200	820×1200	1000×1300
Blade Diameter (mm)	Φ180	Φ220	Φ280	Φ350	Φ400	Φ550
Shaft Speed (rpm)	10-40	10-40	10-40	10-40	10-40	10-40
Motor Power (kW)	11	22	37	45	75	90
Output (t/h)	1-5	5-8	8-10	10-12	12-15	15-20

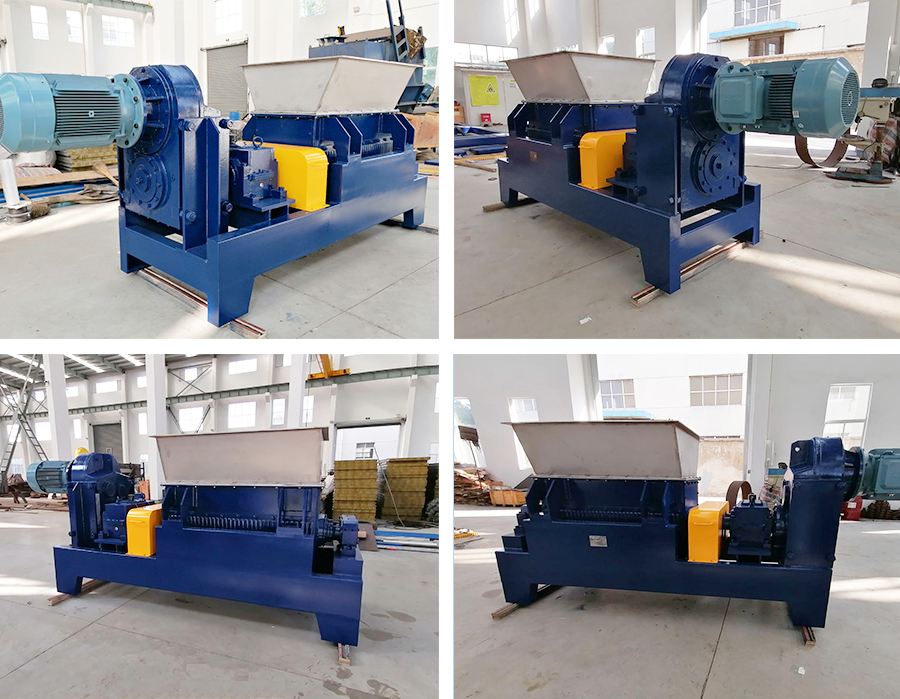

◎ On-site Photos
