Jiangsu Shuoyun Petrochemical Equipment Co., Ltd.

Continuous Cooker ◎ Category: Cooking & Hydrolysis Equipment Series ◎ Application Industries: Wet fish meal production ◎ Equipment Features: High feeding accuracy, corrosion resistance, long service life

◎ Product Introduction
LXC type continuous cooker is one of the key equipment in wet fish meal production. It adopts indirect heating via outer jacket and heating through internal spiral main shaft to fully cook raw fish. This avoids protein loss caused by a large amount of condensate mixing into materials from direct steam heating. The main shaft motor is variable frequency adjustable. Rotating speed can be adjusted according to different raw fish to meet production requirements for different fish species, fish sizes and seasonal variations. An automatic steam trap system recovers all steam condensate to greatly improve waste heat utilization and reduce energy consumption.

◎ Technical Parameters

Model	LXC-50	LXC-100	LXC-150	LXC-200	LXC-300	LXC-500	LXC-600
Capacity (t/d)	50	100	150	200	300	500	600
Heating Area (㎡)	Customized based on different materials
Design Temperature (℃)	≤185
Design Pressure (MPa)	≤1.0

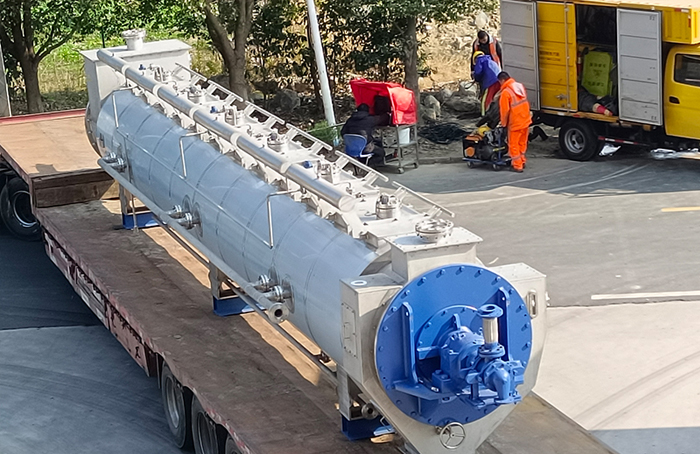

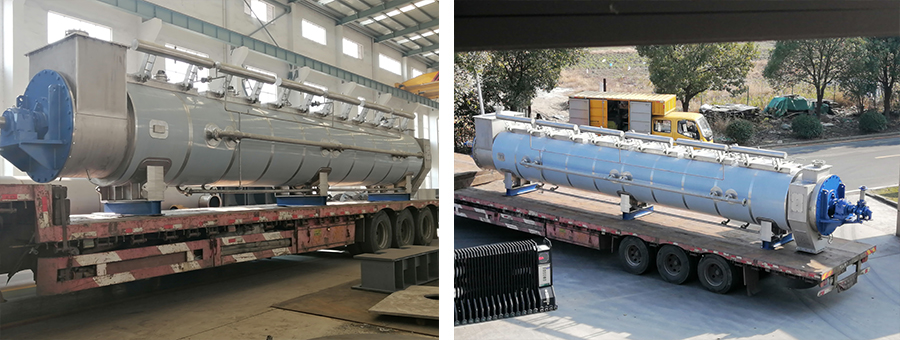

◎ On-site Photos
