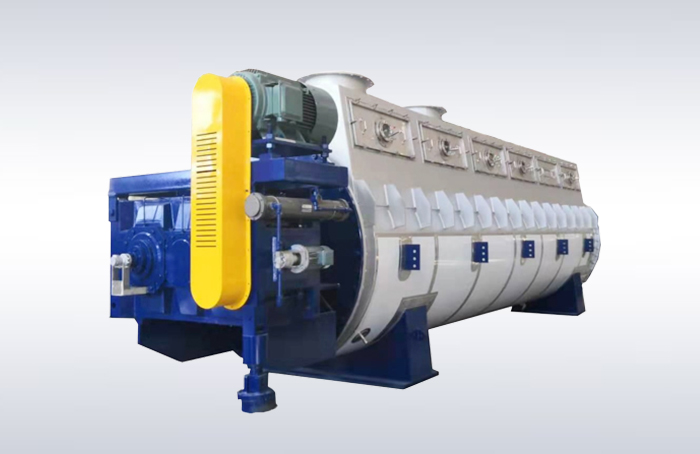

Disc Sludge Dryer ◎ Category: Municipal & Industrial Sludge Drying Equipment Series ◎ Application Industries: Municipal & industrial sludge, animal & plant protein, food, chemical pesticides, etc. ◎ Equipment Features: High drying efficiency, long service life, low maintenance frequency

◎ Product Introduction

The PSD type disc sludge dryer adopts heating on both shell and internal rotor, which greatly increases drying area, improves thermal efficiency and achieves thorough material drying. The dryer consists of a horizontal shell and a heated rotor fitted with multiple heating discs. Adjustable-angle pushers are installed on discs, which heat materials and convey materials towards discharge end during operation. The steam distribution device inside the rotating shaft evenly distributes steam to each heating disc to maintain constant temperature. Condensate is discharged through a special shaft-end assembly. Featuring high drying efficiency, long service life and low maintenance frequency, this machine is widely used for drying high-moisture and high-viscosity materials including municipal sludge, industrial sludge, animal protein, plant protein, food, chemicals and pesticides. Material options are carbon steel, 304, 316L, 2205 duplex steel according to different material properties.

◎ Technical Parameters

Item	Design Pressure(MPa)	Design Temperature(℃)	Drying Area(㎡)	Capacity (T/D)
Spec.	1.0	≤185	30-600	10-150
For detailed technical parameters, please contact Mr. Ming    +86 13961545878

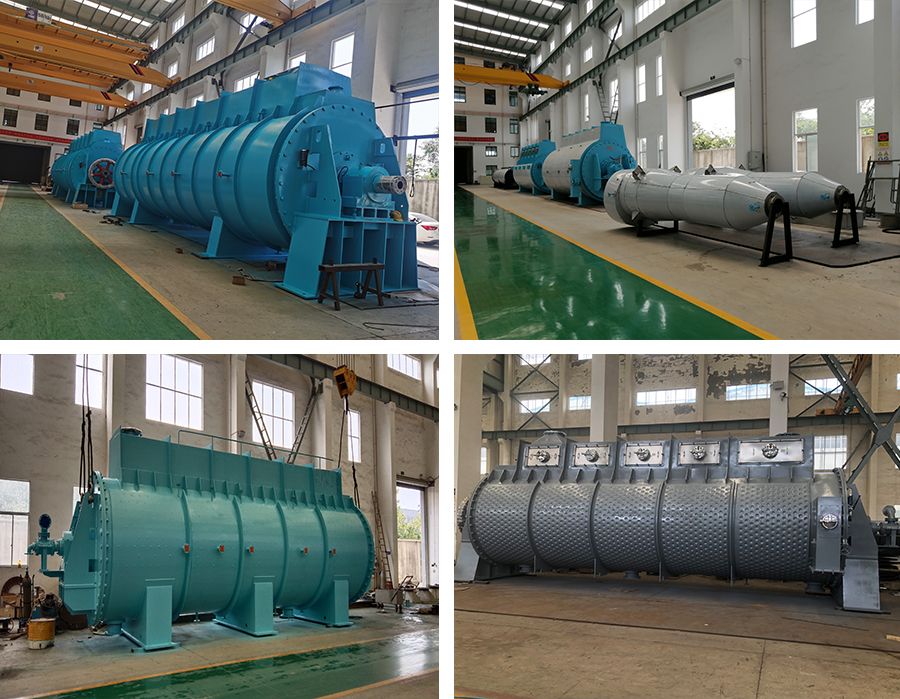

◎ On-site Photos
