Tube Bundle Dryer ◎ Category: Drying Equipment Series ◎ Application Industries: Chemical industry, light industry, food, grain deep processing, feed ◎ Equipment Features: Simple installation, easy control, good quality of dried product, reliable and durable

◎ Product Introduction

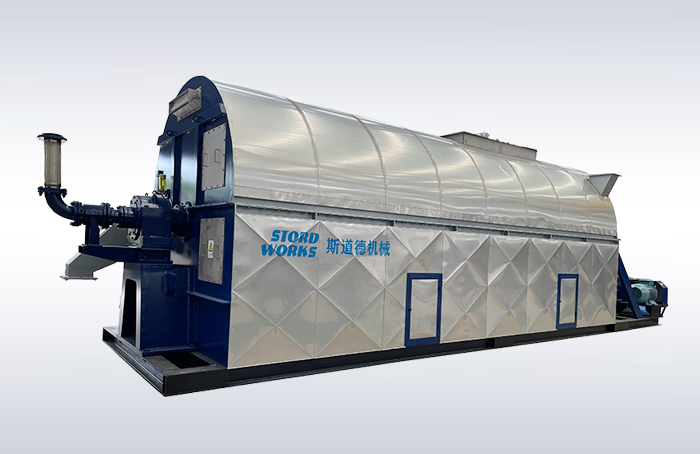

The GSD type tube bundle dryer consists of a stationary shell fitted with a rotatable heating tube bundle. Steam enters the tubes through rotary joints for heat transfer and then drains out as condensate. Moisture inside materials is heated outside the tubes and vaporized, then extracted by negative pressure fan. Materials are thrown up by rotating material shovels inside the machine, fall evenly onto the outer surface of heating tubes, and are pushed from feed end to discharge end by material shovels, achieving excellent drying performance.
GSD series tube bundle dryers are widely used for drying loose materials in chemical, light industry, food, grain deep processing, feed and other industries, such as corn starch germ, protein powder, fiber, feed, distiller's grains, bone meal, fish meal, granular or powdered fertilizer, inorganic minerals, etc.

◎ Technical Parameters

Model	GSD-300	GSD-500	GSD-800	GSD-1000	GSD-1200	GSD-1500
Heating Area(㎡)	300	500	800	1000	1200	1500
Power (kW)	30	45	75	90	110	132
Material	Inlet Moisture		Outlet Moisture		Drying Capacity (Kg H₂O/m²·h)
Corn Germ	55%		3-5%		2.5-3.5
Corn Fiber	60%		10-12%		3.5-3.8
Tuber Fiber	65%		10-12%		3.0-4.5
Distiller's Grains	65%		10-12%		4.5-5.0

◎ Advantages
Simple installation, easy control, excellent quality of dried product, reliable and durable.

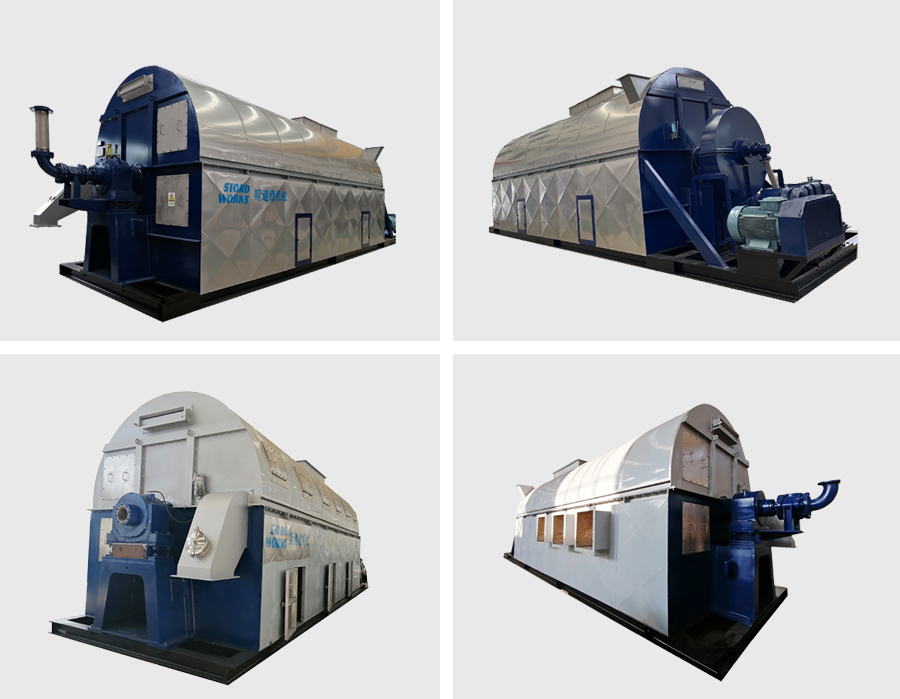

◎ On-site Photos
