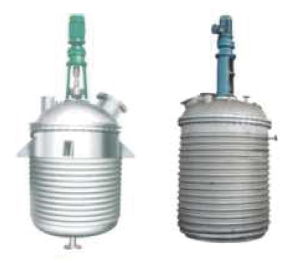

Reaction kettle

Reaction vessels are pressure vessels mainly used for physical and chemical reactions, such as reaction kettles, oxidation kettles, decomposition kettles, polymerization kettles, crystallization kettles, etc. Our company can manufacture large reaction kettles with volume up to 80m³, pressure up to 10MPa and single unit weight up to 100T. Heating methods include electric heating, steam, thermal oil, infrared heating, etc.; cooling methods consist of jacket cooling, external coil cooling and internal coil cooling inside the kettle. The rotation speed is 0~1000r/min with variable frequency speed regulation. The type of stirring impeller can be arbitrarily selected according to user requirements. Available materials include carbon steel, stainless steel, aluminum alloy, duplex steel and their composite materials.

According to different sealing types, reaction kettles can be divided into: packing seal, mechanical seal and magnetic seal.

Based on manufacturing structure, reaction kettles fall into three categories: open flat cover reaction kettle, open large butt-welded flange reaction kettle and closed reaction kettle. Each structure has its applicable scope, advantages and disadvantages.

Capacity (L)	Nominal Diameter (φmm)	Jacket Nominal Diameter (φmm)	Motor Power (KW)	Reducer Model	Stirring Speed (r.p.m)
30	300	400	0.6	BLD 0.6-1	60-100
50	400	500	0.8	BLD 0.8-1	60-100
100	500	600	1.1	BLD 1.1-1	60-100
200	600	700	2.2	BLD 2.2-2	60-100
300	700	800	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1200	1300	4	BLD 4-3	60-100
2000	1300	1400	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1500	1600	7.5	BLD 7.5-4	60-100
3500	1500	1600	7.5	BLD 7.5-4	60-100
4000	1600	1700	7.5	BLD 7.5-4	60-100
5000	1800	1900	11	BLD 11-4	60-100
6000	1900	2000	15	BLD 15-5	60-100
10000	2200	2300	15	BLD 15-5	60-100
18000	2700	2800	15	BLD 15-5	60-100
32000	3200	3300	37	BLD 37-56A	35-59
80000	4000	4200	55	BLD 55-56A	35-59
