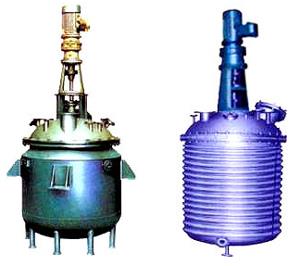

Stainless steel reactor

Our factory manufactures stainless steel reactors (electric, steam, thermal oil heated), which consist of kettle cover, cylinder, jacket, agitator, shaft sealing transmission assembly and support. The kettle body and components in contact with internal materials are fabricated from 0Cr18Ni9 or 1Cr18Ni9Ti acid-resistant stainless steel plates.

Our factory specializes in manufacturing stainless steel reaction kettles and undertakes design & fabrication of non-standard equipment for chemical and light industries. Customers at home and abroad are welcome to make inquiries.

Agitator types of our reaction kettles include various conventional styles: paddle agitator, turbine agitator, propeller agitator, anchor agitator, frame agitator, helical ribbon agitator, serrated disc agitator, etc.

We specially recommend high-shear emulsifying reaction kettles, combined stirring reactors integrating frame agitator, high-shear emulsifier and wall scraper. With remarkable advantages, they integrate dispersion, mixing, emulsification, homogenization and pulverization functions, featuring ultra-fine processing, high quality and high efficiency.

Electric Heating Stainless Steel Reaction Kettle

Nominal Capacity (L)	Electric Heating Power	Inner kettle diameter φ(mm)	Jacket diameter φ(mm)	Reducer Model	Motor n/kw	Agitation Speed (r.p.m)
50	4×2 KW	φ400	φ600	BLD 0.8-1	1450/0.8	60-100
100	6×2 KW	φ500	φ700	BLD 1.1-1	1450/1.1	60-100
300	6×4 KW	φ800	φ1000	BLD 2.2-2	1450/2.2	60-100
500	9×4 KW	φ900	φ1100	BLD 3-2	1450/3	60-100
1000	12×4 KW	φ1200	φ1400	BLD 4-3	1450/4	60-100
2000	15×5 KW	φ1400	φ1600	BLD 4-3	1450/4	60-100
3000	15×6 KW	φ1600	φ1800	BLD 5.5-3	1450/5.5	60-100

Steam Heating Stainless Steel Reaction Kettle

Specification (L)	Inner kettle diameter φ(mm)	Jacket diameter φ(mm)	Motor Power (kW)	Reducer Model	Agitation Speed (r.p.m)
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	650	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-56A	35-59

Since production processes and operating conditions vary among users, jacket heating types include electric rod heating, steam heating and thermal oil circulation heating. Shaft sealing devices adopt packing seal or mechanical seal. Agitator types include anchor, paddle, turbine, propeller or frame styles. The quantity, specification of openings and other requirements can be designed and manufactured as per customer requirements.
